产品详情 / Product Detail
商品描述
材质：UL合格之NYLON 66，防火等级94V-2。
颜色：标准色为本色(白色)，另备有黑色，特殊颜色欢迎订做。
用法：将扎线带尾巴穿过头部,即可束紧。
※CVT-070，100无最小束线径。
※CV-200T尾巴
※CV-180T，190T尾巴

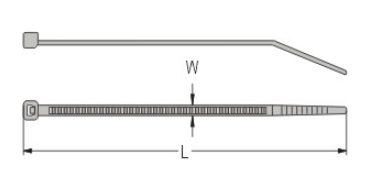

| 型号 | 长L | 宽W | 最大束线径 | 承受力 | ||||||
| 本色 | 黑色 | |||||||||
| 100 pcs/包 | 1000 pcs/包 | 100 pcs/包 | 1000 pcs/包 | mm | inch | lbs | kgs | |||
| CV-060 | CV-060K | CV-060B | CV-060KB | 63.7 | 2 1/2" | 2.40 | 11 | 1/8 | 8 | |
| ※ | CVT-070 | CVT-070K | CVT-070B | CVT-070KB | 71.0 | 2 13/16" | 1.60 | 11 | 7 | 3 |
| CV-075 | CV-075K | CV-075B | CV-075KB | 75.0 | 3" | 2.40 | 15 | 18 | 8 | |
| CV-080 | CV-080K | CV-080B | CV-080KB | 80.0 | 3 1/8" | 2.50 | 16 | 18 | 8 | |
| CV-094 | CV-094K | CV-094B | CV-094KB | 96.0 | 3 3/4" | 2.50 | 21 | 18 | 8 | |
| CV-100 | CV-100K | CV-100B | CV-100KB | 100.0 | 4" | 2.50 | 22 | 18 | 8 | |
| ※ | CVT-100 | CVT-100K | CVT-100B | CVT-100KB | 103.0 | 4" | 1.95 | 22 | 18 | 8 |
| CV-120S | CV-120SK | CV-120SB | CV-120SKB | 120.0 | 4 3/4" | 2.50 | 28 | 18 | 8 | |
| CV-120 | CV-120K | CV-120B | CV-120KB | 120.0 | 4 3/4" | 3.20 | 28 | 40 | 18 | |
| CV-120L | CV-120LK | CV-120LB | CV-120LKB | 120.0 | 4 3/4" | 4.80 | 27 | 50 | 22 | |
| CV-120LL | CV-120LLK | CV-120LLB | CV-120LLKB | 120.0 | 4 3/4" | 7.60 | 22 | 120 | 55 | |
| CV-140S | CV-140SK | CV-140SB | CV-140SKB | 142.0 | 5 1/2" | 2.50 | 35 | 18 | 8 | |
| CV-140 | CV-140K | CV-140B | CV-140KB | 142.0 | 5 1/2" | 3.20 | 34 | 40 | 18 | |
| CV-150 | CV-150K | CV-150B | CV-150KB | 150.0 | 6" | 3.60 | 36 | 40 | 18 | |
| CV-150S | CV-150SK | CV-150SB | CV-150SKB | 155.0 | 6 1/8" | 2.50 | 39 | 18 | 8 | |
| CV-150L | CV-150LK | CV-150LB | CV-150LKB | 150.0 | 6" | 7.60 | 32 | 120 | 55 | |
| CV-160L | CV-160LK | CV-160LB | CV-160LKB | 160.0 | 6 1/4" | 4.80 | 39 | 50 | 22 | |
| CV-165 | CV-165K | CV-165B | CV-165KB | 165.0 | 6 1/2" | 2.50 | 43 | 18 | 8 | |
| CV-180 | CV-180K | CV-180B | CV-180KB | 180.0 | 7" | 3.60 | 46 | 40 | 18 | |
| ※ | CV-180T | CV-180TK | CV-180TB | CV-180TKB | 180.0 | 7" | 3.60 | 46 | 40 | 18 |
| CV-190 | CV-190K | CV-190B | CV-190KB | 190.0 | 7 1/2" | 4.80 | 49 | 50 | 22 | |
| ※ | CV-190T | CV-190TK | CV-190TB | CV-190TKB | 190.0 | 7 1/2" | 4.80 | 49 | 50 | 22 |
| CV-200M | CV-200MK | CV-200MB | CV-200MKB | 203.0 | 8" | 2.50 | 55 | 18 | 8 | |
| CV-200S | CV-200SK | CV-200SB | CV-200SKB | 203.0 | 8" | 3.20 | 53 | 40 | 18 | |
| CV-200A | CV-200AK | CV-200AB | CV-200AKB | 203.0 | 8" | 3.60 | 52 | 40 | 18 | |
| CV-200 | CV-200K | CV-200B | CV-200KB | 203.0 | 8" | 4.60 | 52 | 50 | 22 | |
| CV-200D | CV-200DK | CV-200DB | CV-200DKB | 203.0 | 8" | 4.80 | 52 | 50 | 22 | |
| ※ | CV-200T | CV-200TK | CV-200TB | CV-200TKB | 203.0 | 8" | 4.60 | 52 | 50 | 22 |
| CV-200L | CV-200LK | CV-200LB | CV-200LKB | 203.0 | 8" | 7.60 | 52 | 120 | 55 | |
| CV-240L | CV-240LK | CV-240LB | CV-240LKB | 240.0 | 9 7/16" | 7.60 | 61 | 120 | 55 | |
| CV-250S | CV-250SK | CV-250SB | CV-250SKB | 250.0 | 10" | 2.50 | 68 | 18 | 8 | |
| CV-250M | CV-250MK | CV-250MB | CV-250MKB | 250.0 | 10" | 3.60 | 68 | 40 | 18 | |
| CV-250 | CV-250K | CV-250B | CV-250KB | 250.0 | 10" | 4.80 | 68 | 50 | 22 | |
| CV-250L | — | CV-250LB | — | 250.0 | 10" | 7.60 | 64 | 120 | 55 | |
| CV-265 | CV-265K | CV-265B | CV-265KB | 265.0 | 10 1/2" | 3.60 | 73 | 40 | 18 | |
| CV-280 | CV-280K | CV-280B | CV-280KB | 280.0 | 11" | 4.80 | 77 | 50 | 22 | |
| CV-280L | CV-280LK | CV-280LB | CV-280LKB | 280.0 | 11" | 7.60 | 74 | 120 | 55 | |
| CV-292 | CV-292K | CV-292B | CV-292KB | 292.0 | 11 1/2" | 3.60 | 82 | 40 | 18 | |
| CV-300M | — | CV-300MB | — | 300.0 | 11 7/8" | 2.50 | 80 | 18 | 8 | |
| CV-300S | — | CV-300SB | — | 300.0 | 11 7/8" | 4.80 | 83 | 50 | 22 | |
| CV-300 | — | CV-300B | — | 300.0 | 11 7/8" | 7.60 | 80 | 120 | 55 | |
| CV-310 | — | CV-310B | — | 310.0 | 12" | 4.80 | 86 | 50 | 22 | |
| CV-330 | — | CV-330B | — | 330.0 | 13" | 3.60 | 93 | 40 | 18 | |
| CV-340 | — | CV-340B | — | 340.0 | 13 1/2" | 7.60 | 92 | 120 | 55 | |
| CV-350 | — | CV-350B | — | 350.0 | 13 3/4" | 4.60 | 98 | 50 | 22 | |
| CV-360 | — | CV-360B | — | 360.0 | 14 3/16" | 7.60 | 99 | 120 | 55 | |
| CV-368S | — | CV-368SB | — | 368.0 | 14 1/2" | 3.60 | 105 | 40 | 18 | |
| CV-368 | — | CV-368B | — | 368.0 | 14 1/2" | 4.80 | 105 | 50 | 22 | |
| CV-370 | — | CV-370B | — | 370.0 | 14 9/16" | 7.60 | 101 | 120 | 55 | |
| CV-380S | — | CV-380SB | — | 380.0 | 15" | 6.40 | 108 | 100 | 45 | |
| CV-380 | — | CV-380B | — | 380.0 | 15" | 7.60 | 105 | 120 | 55 | |
| CV-380L | — | CV-380LB | — | 380.0 | 15" | 8.00 | 105 | 120 | 55 | |
| CV-385 | — | CV-385B | — | 385.0 | 15 3/16" | 4.80 | 110 | 50 | 22 | |
| CV-400S | — | CV-400SB | — | 400.0 | 15 3/4" | 2.50 | 116 | 18 | 8 | |
| CV-400 | — | CV-400B | — | 400.0 | 15 3/4" | 4.60 | 116 | 50 | 22 | |
| CV-432 | — | CV-432B | — | 432.0 | 17" | 4.80 | 125 | 50 | 22 | |
| CV-450 | — | CV-450B | — | 450.0 | 17 3/4" | 8.00 | 128 | 120 | 55 | |
| CV-450L | — | CV-450LB | — | 450.0 | 17 3/4" | 9.00 | 128 | 175 | 80 | |
| CV-450M | — | CV-450MB | — | 450.0 | 17 3/4" | 4.80 | 131 | 50 | 22 | |
| CV-500 | — | CV-500B | — | 500.0 | 19 11/16" | 4.80 | 147 | 50 | 22 | |
| CV-500L | — | CV-500LB | — | 500.0 | 19 11/16" | 8.00 | 143 | 120 | 55 | |
| CV-550 | — | CV-550B | — | 550.0 | 21 11/16" | 8.00 | 160 | 120 | 55 | |
| CV-550D | — | CV-550DB | — | 550.0 | 21 11/16" | 9.00 | 160 | 175 | 80 | |
| CV-550S | — | CV-550SB | — | 550.0 | 21 11/16" | 4.80 | 162 | 50 | 22 | |
| CV-610S | — | CV-610SB | — | 610.0 | 24" | 4.80 | 181 | 50 | 22 | |
| CV-610M | — | CV-610MB | — | 610.0 | 24" | 7.60 | 177 | 120 | 55 | |
| CV-610 | — | CV-610B | — | 610.0 | 24" | 9.00 | 177 | 175 | 80 | |
| CV-635S | — | CV-635SB | — | 635.0 | 25" | 4.80 | 189 | 50 | 22 | |
| CV-685 | — | CV-685B | — | 685.0 | 27" | 9.00 | 202 | 175 | 80 | |
| CV-710 | — | CV-710B | — | 710.0 | 28" | 9.00 | 209 | 175 | 80 | |
| CV-730S | — | CV-730SB | — | 730.0 | 28 3/4" | 4.80 | 219 | 50 | 22 | |
| CV-750 | — | CV-750B | — | 750.0 | 29 1/2" | 7.50 | 223 | 120 | 55 | |
| CV-762 | — | CV-762B | — | 762.0 | 30" | 9.00 | 227 | 175 | 80 | |
| CV-812 | — | CV-812B | — | 812.0 | 32" | 9.00 | 243 | 175 | 80 | |
| CV-914S | — | CV-914SB | — | 914.0 | 36" | 4.80 | 278 | 50 | 22 | |
| CV-914 | — | CV-914B | — | 914.0 | 36" | 9.00 | 275 | 175 | 80 | |
| CV-940 | — | CV-940B | — | 940.0 | 37" | 9.00 | 284 | 175 | 80 | |
| CV-1168 | — | CV-1168B | — | 1,168.0 | 46" | 9.00 | 356 | 175 | 80 | |
| CV-1219 | — | CV-1219B | — | 1,219.0 | 48" | 9.00 | 372 | 175 | 80 | |
| CV-1500 | — | CV-1500B | — | 1,500.0 | 59" | 9.00 | 462 | 175 | 80 | |
